Introduction

This Guide cover Denshigiken M66207 Based ECUs.

  • 1992-1995 Honda Civic
  • 1992-1995 Honda DelSol
  • 1992-1995 Honda/Acura Integra

Check if your ECU hardware is the same before apply modification.

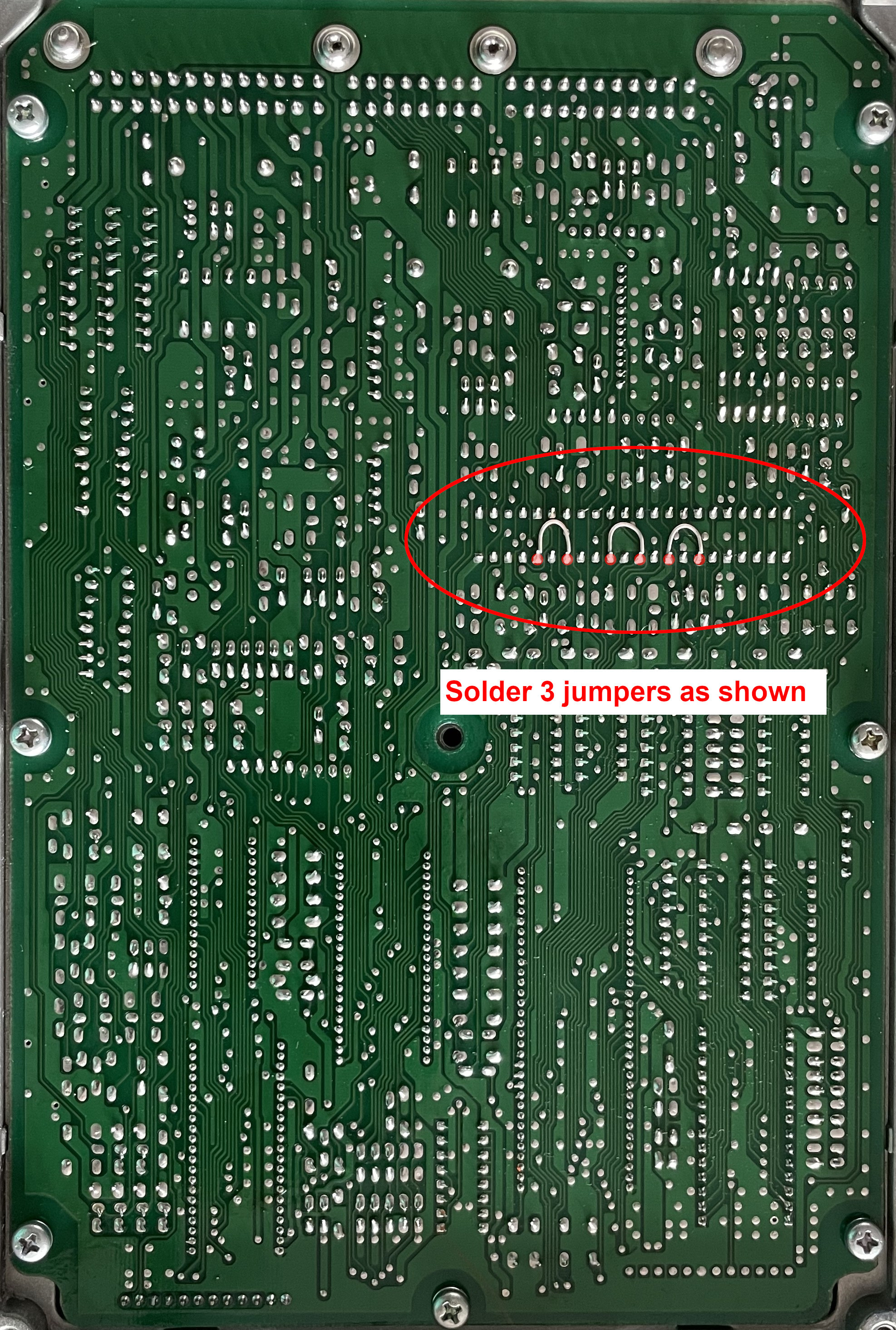

USDM ECU (excl. P07 5 wire LAF Sensor)

M66207 MD0 Mod USDM.jpg

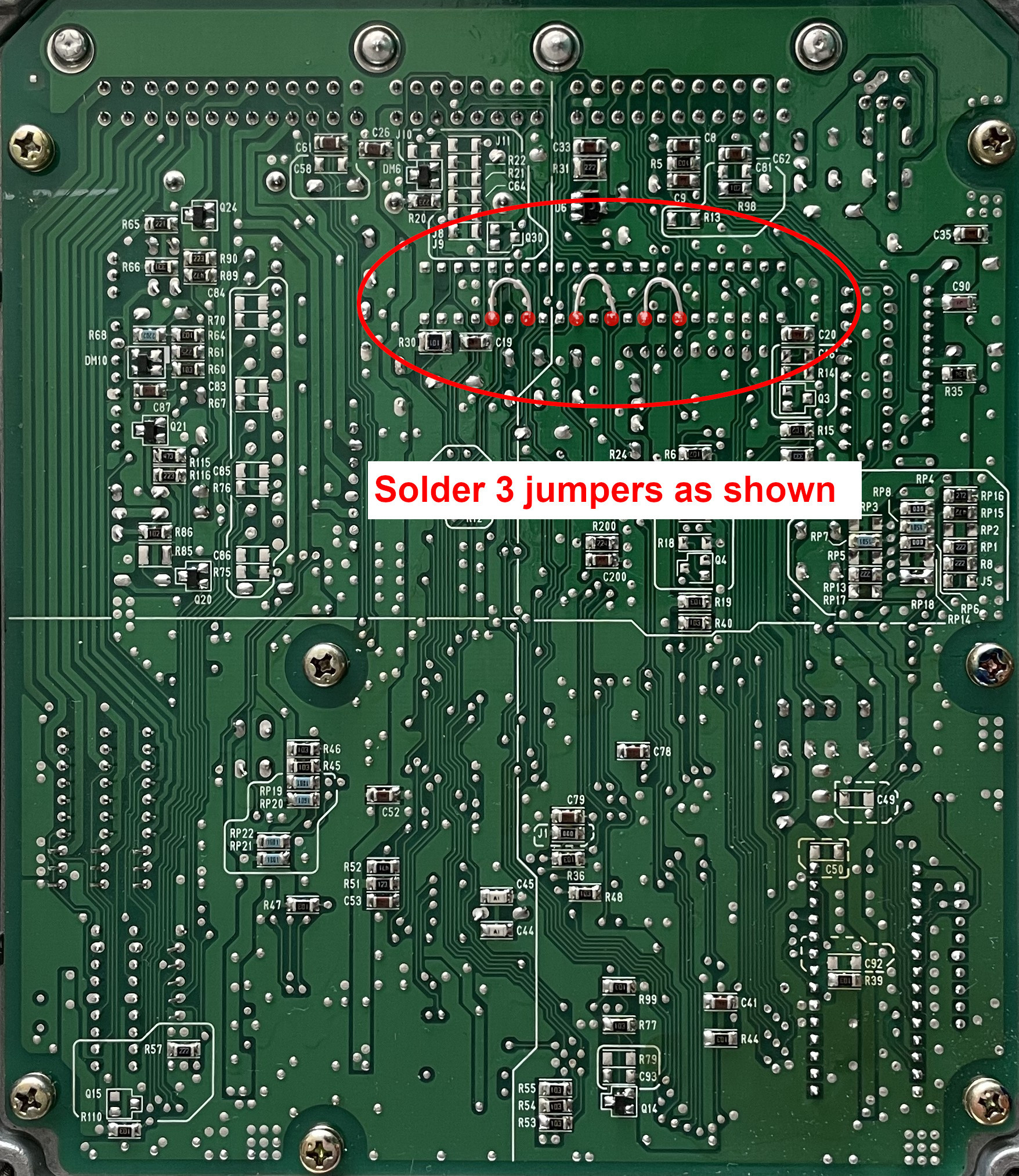

JDM ECU

M66207 MD0 Mod JDM.jpg

USDM ECU (P07 5 wire LAF Sensor)

Coming soon...
